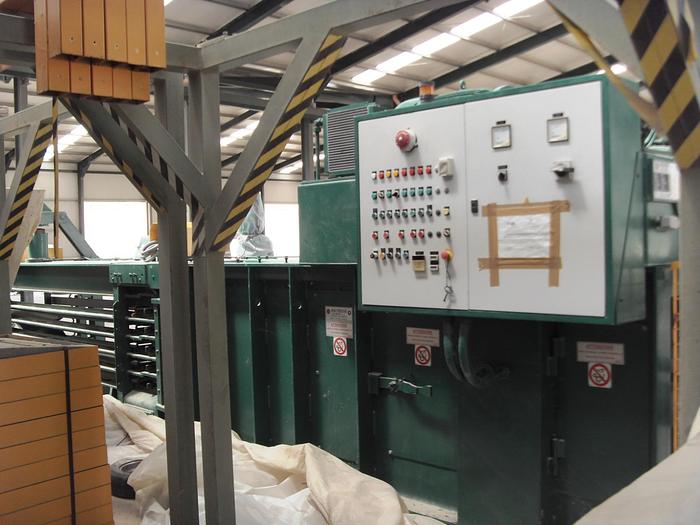

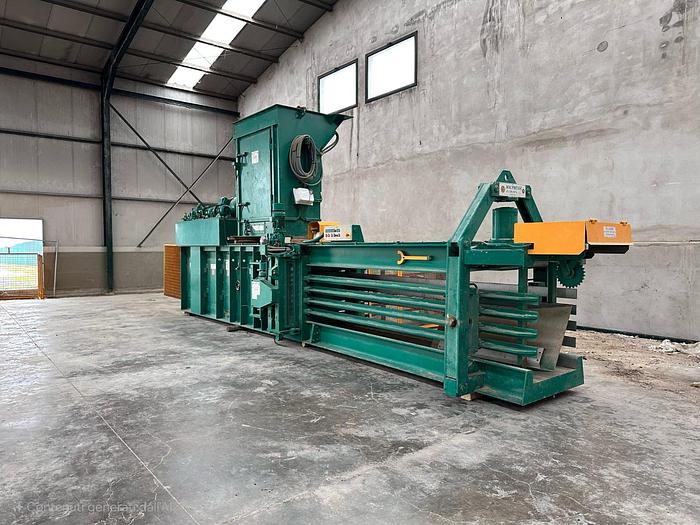

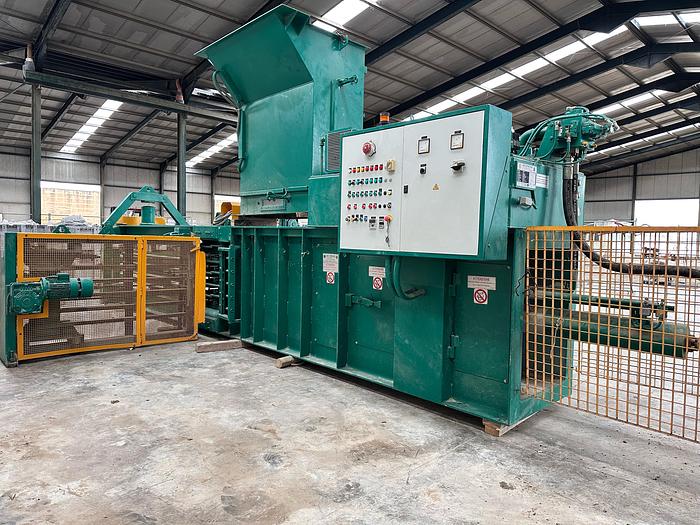

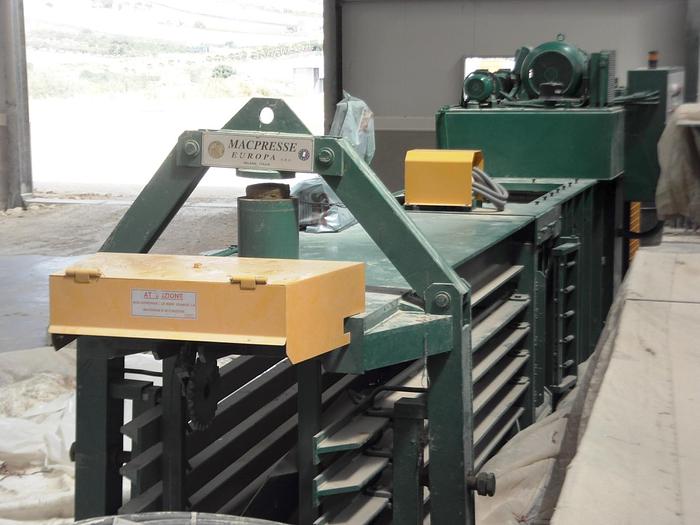

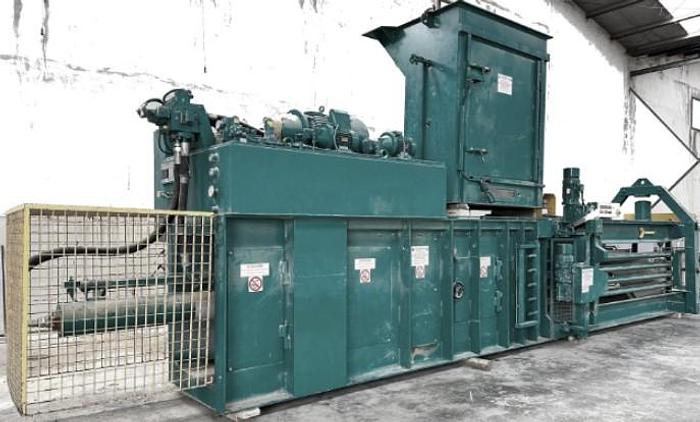

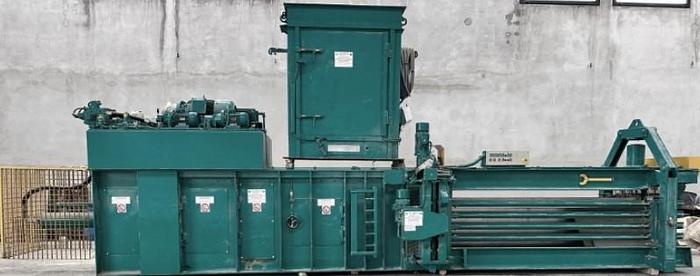

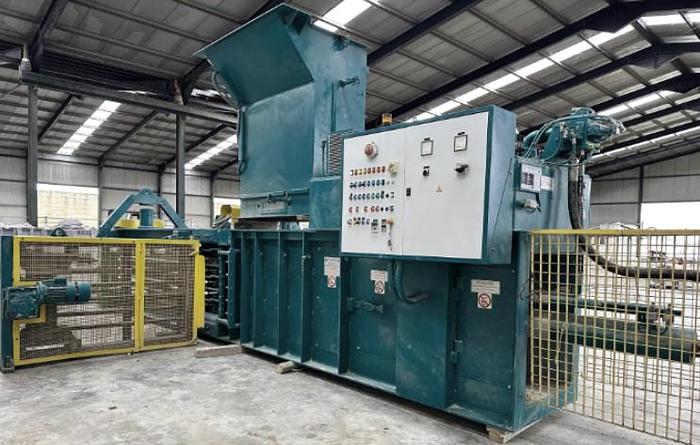

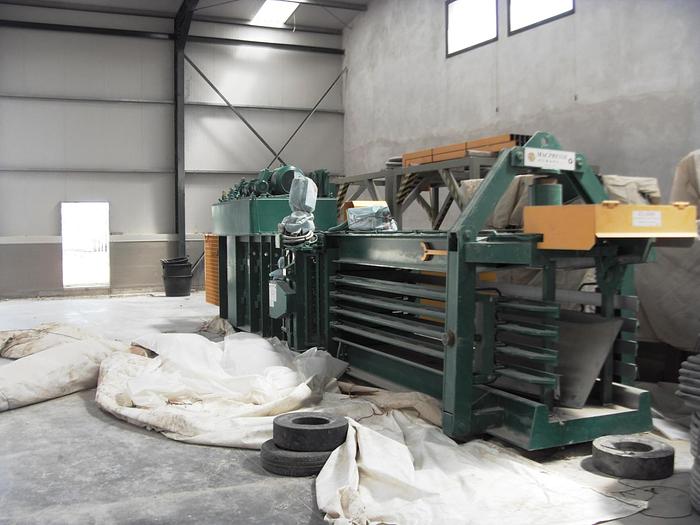

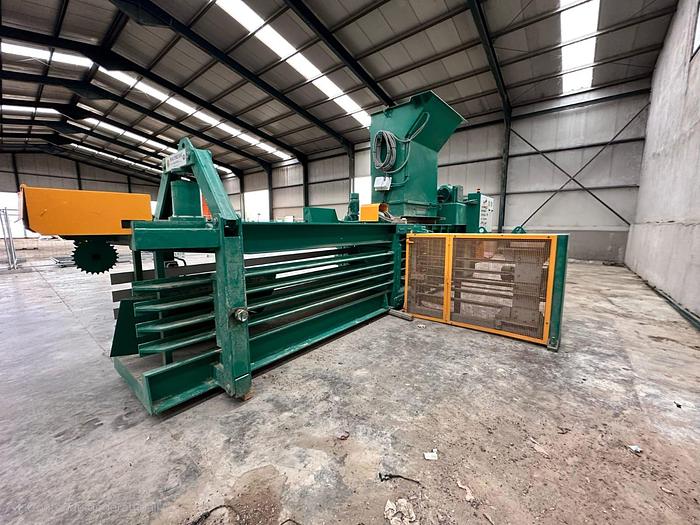

2008 MACPRESSE MAC 105

MACPRESSE EUROPA

Mod.MAC 105,

suitable for pressing plastics and paper scraps

Main pump motor power: kw 45

Back pressure pump motor power: kw 2.2

Cooling pump motor power: kw 2.2

Needle motor power: kw 4

Thread-cutter motor power: kw 2.2

Thread-turning motor power: kw 1.5

Main pump: double vane pump

Flow rate low pressure pump P1: 1/min 204

High pressure pump capacity P2: 1/min 105

Maximum pressure: bar 250 working; 275 maximum

Back pressure pump: gear pump

Flow rate: 1/min 12

Maximum pressure: bar 100

Cooling pump: gear pump

Flow rate: 1/min 60

Thrust force at trolley: ton 70

Specific pressure at trolley: Kg/cm² 8

No load cycles: no. 6

Hydraulic oil tank capacity: l 1300

Weight without oil: kg 20,000

Specific weight of base on ground: Kg/cm² 1

Binding wires: no. 5

Bale dimensions: L X H 1100 mm x 800 mm

This machine is new, tested but never used.

possible dry test if required.
