SCHIAVI BOBST CI FLEXO PRINT 8 col.1300 mm.

SCHIAVI-BOBST C.I.FLEXO PRINT

Colors: 8    Print possibilities: 4+4

Materials: LDPE, HDPE, BOPP, CPP, PET, ALU, PAPER, BIO

with gears

Checked up: 2022 by BOBST technicians both mechanic and electric parts

Max Speed: 300m/min

Fast Sleeve Change: Yes

Fast Sleeve Anilox Change: Yes

Computer Supervision: Yes

Web Width: 1320mm

Print Width: 1290mm

Min Print Repeat: 430mm

Max Print Repeat: 1200mm

Unwinder Type: Double Turret Automatic Flying Splice

Winder Type: Double Turret Automatic Flying Splice

Max Reel Diameter Unwinder: 800mm

Max Reel Diameter Winder: 800mm

Drying: Thermal Oil

Video camera: Yes (FIFE)

Corona Treatment: Yes  (Cason) for conductive and non-conductive materials

Web Guides: In and out (BST)

Viscosity Control: Gama (not in use, has to be repaired)

Inking System: Ceramic Anilox + Chambered Doctor Blades

Anilox Sleeves:   23 pieces  (2x80ln/cm, 2x100ln/cm, 2x120ln/cm, 2x140ln/cm, 1x160ln/cm, 1x180ln/cm, 1x200ln/cm, 2x220ln/cm, 1x270ln/cm, 5x360ln/cm, 4x380ln/cm )

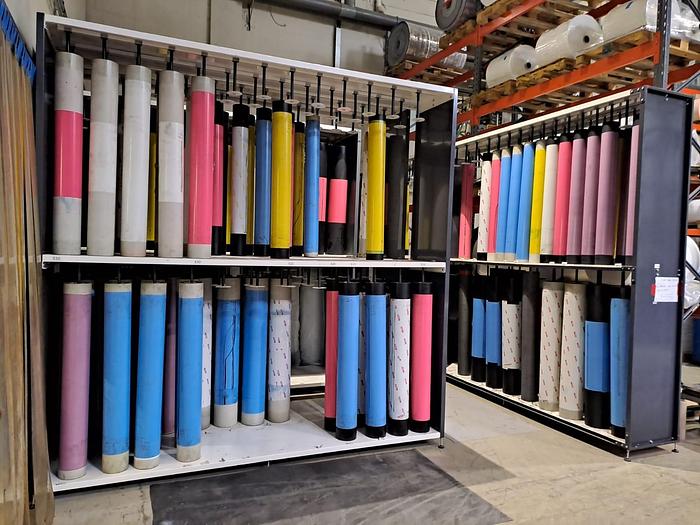

Printing Sleeves: 40 pieces ( 8x850, 8x1000, 8x1020, 8x1050, 8x1150 )

Print Cylinders: 8 for sleeves more than 700mm repeat and 8 adaptors for sleeves more than 900mm repeat

Note: Motorized print station positioning- Motorized remote controlled longitudinal and side registers, Chiller thermoregulator,

Turning Cross Bar in order to print in both sides of the film (4+4)

Spare Parts: Drives, Cards and Gears

Reduced price for deal in April +costs for engineering and transport

Availability: 04/2025 after payment – test possible –video by strong interest on demand
